Specification Category | Values/Range |
Product Name | Solar Photovoltaic Steel Channels |
Material | Galvanized Steel, Stainless Steel |

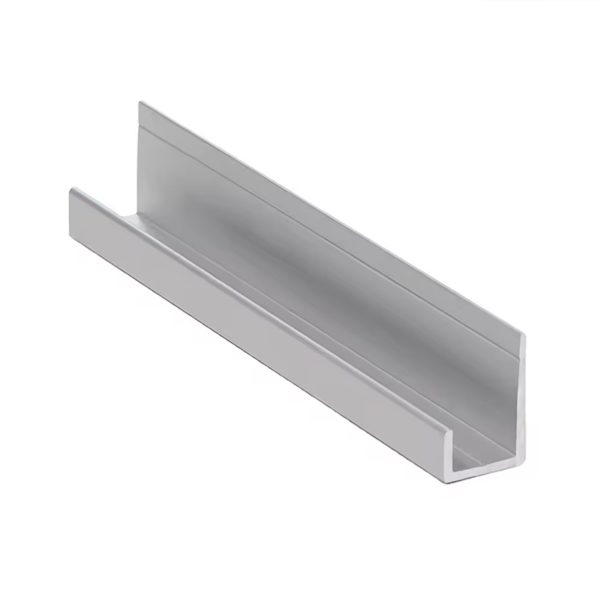

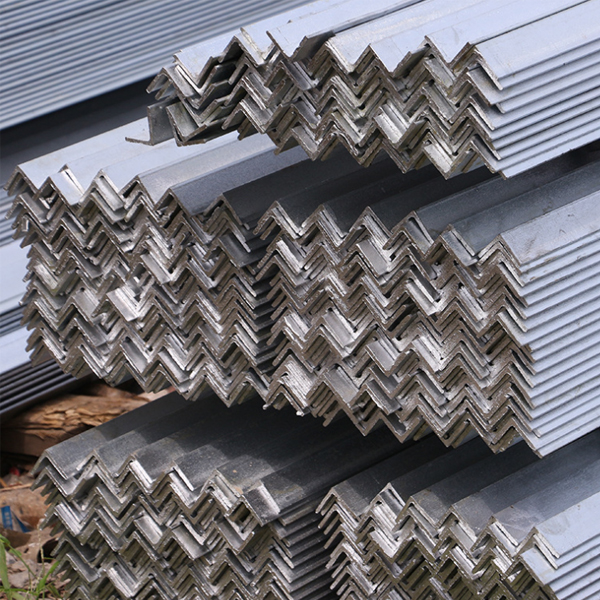

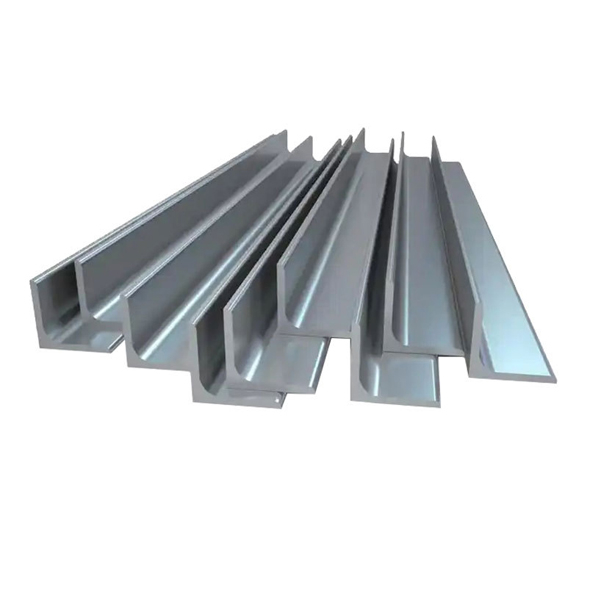

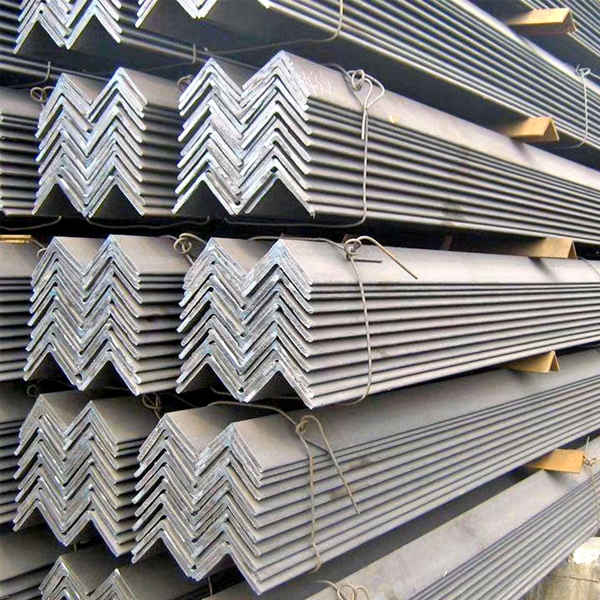

Shape | C-Shape, U-Shape, J-Shape,Angled Channels |
Dimensions | Varies (e.g., 40x40mm to 100x100mm) |
Thickness | Typically 1.5mm to 3mm |
Load Capacity | Up to several thousand kg depending on size and configuration |
Corrosion Resistance | Hot-Dip Galvanized, Powder-Coated, Anodized |
Surface Treatment | Powder-Coated, Anodized |
Mounting Holes | Standard patterns (e.g., 50x50mm) |
Adjustability | Typically 0 to 60 |
Wind Load Resistance | Varies (e.g., up to 2400 Pa) |
Snow Load Resistance | Varies (e.g., up to 5400 kg/m) |
Temperature Range | Typically -40°C to 90°C |
Certifications | CE Marking, ASTM Standards |
Warranty | Typically 10-15 years |
Customization Options | Available upon request |
Specification Category | Values/Range |
Product Name | Solar Photovoltaic Steel Channels |
Material | Galvanized Steel, Stainless Steel |
Shape | C-Shape, U-Shape, J-Shape,Angled Channels |
Dimensions | Varies (e.g., 40x40mm to 100x100mm) |
Thickness | Typically 1.5mm to 3mm |
Load Capacity | Up to several thousand kg depending on size and configuration |
Corrosion Resistance | Hot-Dip Galvanized, Powder-Coated, Anodized |
Surface Treatment | Powder-Coated, Anodized |
Mounting Holes | Standard patterns (e.g., 50x50mm) |
Adjustability | Typically 0 to 60 |
Wind Load Resistance | Varies (e.g., up to 2400 Pa) |
Snow Load Resistance | Varies (e.g., up to 5400 kg/m) |
Temperature Range | Typically -40°C to 90°C |
Certifications | CE Marking, ASTM Standards |
Warranty | Typically 10-15 years |
Customization Options | Available upon request |
Our Solar Mounting Accessories Steel Channel is meticulously designed with a focus on functionality and durability. Crafted from high-quality steel, the channel features a precisely engineered cross-section. The shape is optimized to provide maximum strength while minimizing material usage, achieving an ideal balance between weight and structural integrity. The edges are smoothly finished to prevent any damage to the solar panels or other components during installation. The length of the steel channel can be customized to suit various project requirements, allowing for seamless integration into different solar mounting systems. The surface of the channel may have a textured finish in some models, enhancing the grip when attaching accessories and ensuring a more stable connection. Additionally, the pre-drilled holes are strategically placed along the channel, accurately spaced to accommodate a wide range of bolts and fasteners, making the installation process straightforward and efficient.
1. High Tensile Strength: Constructed from premium grade steel, our steel channel exhibits exceptional tensile strength. It can withstand significant mechanical loads, including wind, snow, and the weight of the solar panels themselves, ensuring the long-term stability of the solar mounting system.
2. Corrosion Resistance: To combat the harsh outdoor environment, the steel channel is often treated with an anti-corrosion coating, such as zinc plating or powder coating. This protection guards against rust and corrosion, prolonging the lifespan of the channel and maintaining its structural integrity even in areas with high humidity or exposure to saltwater.
3. Versatile Compatibility: The pre-drilled holes and standard dimensions of the steel channel make it highly compatible with a variety of solar mounting accessories, including brackets, clamps, and end caps. This versatility allows installers to create customized mounting solutions tailored to specific project needs.
4. Easy Installation: Thanks to its well-thought-out design and the presence of pre-drilled holes, our steel channel is easy to install. It can be quickly assembled using standard tools, reducing the installation time and labor costs associated with setting up a solar mounting system.
Our Solar Mounting Accessories Steel Channel is meticulously designed with a focus on functionality and durability. Crafted from high-quality steel, the channel features a precisely engineered cross-section. The shape is optimized to provide maximum strength while minimizing material usage, achieving an ideal balance between weight and structural integrity. The edges are smoothly finished to prevent any damage to the solar panels or other components during installation. The length of the steel channel can be customized to suit various project requirements, allowing for seamless integration into different solar mounting systems. The surface of the channel may have a textured finish in some models, enhancing the grip when attaching accessories and ensuring a more stable connection. Additionally, the pre-drilled holes are strategically placed along the channel, accurately spaced to accommodate a wide range of bolts and fasteners, making the installation process straightforward and efficient.
1. High Tensile Strength: Constructed from premium grade steel, our steel channel exhibits exceptional tensile strength. It can withstand significant mechanical loads, including wind, snow, and the weight of the solar panels themselves, ensuring the long-term stability of the solar mounting system.
2. Corrosion Resistance: To combat the harsh outdoor environment, the steel channel is often treated with an anti-corrosion coating, such as zinc plating or powder coating. This protection guards against rust and corrosion, prolonging the lifespan of the channel and maintaining its structural integrity even in areas with high humidity or exposure to saltwater.
3. Versatile Compatibility: The pre-drilled holes and standard dimensions of the steel channel make it highly compatible with a variety of solar mounting accessories, including brackets, clamps, and end caps. This versatility allows installers to create customized mounting solutions tailored to specific project needs.
4. Easy Installation: Thanks to its well-thought-out design and the presence of pre-drilled holes, our steel channel is easy to install. It can be quickly assembled using standard tools, reducing the installation time and labor costs associated with setting up a solar mounting system.

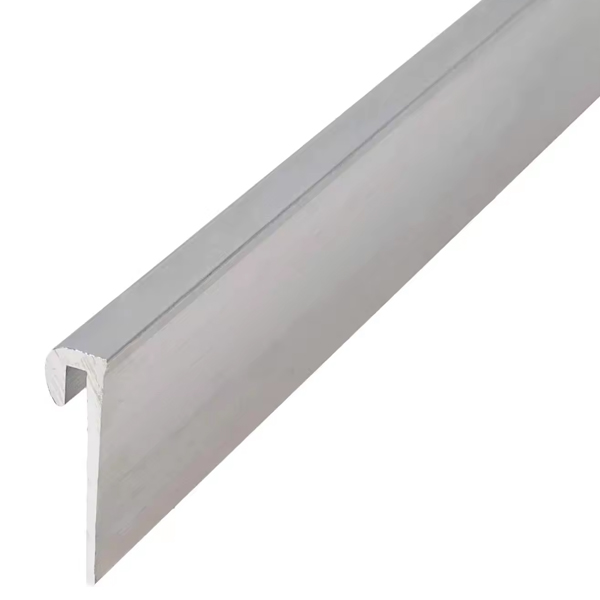

Adjustable Tilt Angles: One of the key benefits of angled & J channels is their ability to accommodate different tilt angles. This flexibility allows solar panels to be positioned at the optimal angle for maximum sunlight exposure, which is particularly important in locations with varying sun angles throughout the year.
Orientation Flexibility: They can be configured to support panels in various orientations (e.g., south-facing, east/west-facing) to optimize energy generation based on the specific needs and geographical location of the installation
Adjustable Tilt Angles: One of the key benefits of angled & J channels is their ability to accommodate different tilt angles. This flexibility allows solar panels to be positioned at the optimal angle for maximum sunlight exposure, which is particularly important in locations with varying sun angles throughout the year.
Orientation Flexibility: They can be configured to support panels in various orientations (e.g., south-facing, east/west-facing) to optimize energy generation based on the specific needs and geographical location of the installation
1. Residential Solar Installations: Our steel channel is an excellent choice for residential solar mounting systems. It provides a sturdy foundation for solar panels on rooftops, ensuring they are securely fastened and can withstand the local weather conditions. The customization options allow homeowners to create a mounting setup that fits the specific layout and design of their roofs.
2. Commercial Solar Farms: In large-scale commercial solar farms, our steel channel is essential for creating a reliable and efficient mounting structure. Its high load-bearing capacity and durability make it suitable for supporting numerous solar panels over a vast area, ensuring the long-term performance of the solar farm.
3. Industrial Rooftop Installations: For industrial buildings with large rooftops, our steel channel offers a practical solution for installing solar panels. It can withstand the heavy loads and harsh environmental conditions often present in industrial settings, providing a stable platform for energy generation.
4. Off-Grid Solar Systems: In off-grid solar systems, where reliability is crucial, our steel channel provides the necessary support for solar panels in remote locations. Its corrosion resistance and strength make it capable of withstanding the rigors of outdoor environments, ensuring the continuous operation of the off-grid system.
1. Residential Solar Installations: Our steel channel is an excellent choice for residential solar mounting systems. It provides a sturdy foundation for solar panels on rooftops, ensuring they are securely fastened and can withstand the local weather conditions. The customization options allow homeowners to create a mounting setup that fits the specific layout and design of their roofs.
2. Commercial Solar Farms: In large-scale commercial solar farms, our steel channel is essential for creating a reliable and efficient mounting structure. Its high load-bearing capacity and durability make it suitable for supporting numerous solar panels over a vast area, ensuring the long-term performance of the solar farm.
3. Industrial Rooftop Installations: For industrial buildings with large rooftops, our steel channel offers a practical solution for installing solar panels. It can withstand the heavy loads and harsh environmental conditions often present in industrial settings, providing a stable platform for energy generation.
4. Off-Grid Solar Systems: In off-grid solar systems, where reliability is crucial, our steel channel provides the necessary support for solar panels in remote locations. Its corrosion resistance and strength make it capable of withstanding the rigors of outdoor environments, ensuring the continuous operation of the off-grid system.
Q1: What is the maximum load capacity of the steel channel?
A: The maximum load capacity of our steel channel depends on several factors, including its size, thickness, and the type of steel used. Generally, our channels are designed to support significant loads, but for specific load capacity details relevant to your project, please refer to our product specifications or contact our technical support team. They can provide you with accurate information based on the particular model and application requirements.
Q2: Can the steel channel be used in coastal areas where there is high salt content in the air?
A: Yes, our steel channel is suitable for use in coastal areas. We offer channels with enhanced corrosion resistance features, such as thicker zinc plating or specialized powder coatings, which can effectively protect the steel from the corrosive effects of salt in the air. However, regular inspection and maintenance may be recommended to ensure the longevity of the channel in such harsh environments.
Q3: How do I determine the appropriate length of the steel channel for my solar installation?
A: To determine the appropriate length, you need to consider the layout of your solar panels and the design of your mounting system. Measure the area where the channel will be installed and take into account any additional space required for accessories and connections. Our sales team can also assist you in calculating the correct length based on your specific project details and provide guidance on how to optimize the use of the channel for your solar installation.
Q4: Are there any specific installation instructions for the steel channel?
A: Yes, we provide detailed installation instructions with our steel channel products. These instructions cover everything from preparing the installation site to attaching the channel and installing the solar panels. It is important to follow these instructions carefully to ensure the proper installation and performance of the solar mounting system. If you have any questions or need further clarification during the installation process, our technical support team is available to help.
Q1: What is the maximum load capacity of the steel channel?
A: The maximum load capacity of our steel channel depends on several factors, including its size, thickness, and the type of steel used. Generally, our channels are designed to support significant loads, but for specific load capacity details relevant to your project, please refer to our product specifications or contact our technical support team. They can provide you with accurate information based on the particular model and application requirements.
Q2: Can the steel channel be used in coastal areas where there is high salt content in the air?
A: Yes, our steel channel is suitable for use in coastal areas. We offer channels with enhanced corrosion resistance features, such as thicker zinc plating or specialized powder coatings, which can effectively protect the steel from the corrosive effects of salt in the air. However, regular inspection and maintenance may be recommended to ensure the longevity of the channel in such harsh environments.
Q3: How do I determine the appropriate length of the steel channel for my solar installation?
A: To determine the appropriate length, you need to consider the layout of your solar panels and the design of your mounting system. Measure the area where the channel will be installed and take into account any additional space required for accessories and connections. Our sales team can also assist you in calculating the correct length based on your specific project details and provide guidance on how to optimize the use of the channel for your solar installation.
Q4: Are there any specific installation instructions for the steel channel?
A: Yes, we provide detailed installation instructions with our steel channel products. These instructions cover everything from preparing the installation site to attaching the channel and installing the solar panels. It is important to follow these instructions carefully to ensure the proper installation and performance of the solar mounting system. If you have any questions or need further clarification during the installation process, our technical support team is available to help.
