Core Technical Features

The core technology of the solar panel mounting hardware focuses on the adaptability to photovoltaic scenarios, structural stability, and weather resistance, meeting the requirements of outdoor complex environments (high temperatures, heavy rain, strong winds, ultraviolet rays). The specific features are as follows:

• Wind and snow-resistant structural design: Optimizing component thickness and connection methods to enhance load-bearing capacity, capable of withstanding strong winds (8-12 levels) and snow pressure in different regions, preventing solar panels from loosening or falling off, and ensuring the long-term stable operation of the photovoltaic system.

• Weather-resistant and corrosion-resistant process: Using high-adaptation materials and surface treatment to resist outdoor ultraviolet rays, humidity, acids, and alkalis, avoiding rusting and aging of components, and adapting to different climate regions (coastal, highlands, rainy areas).

• Lightweight and precise adaptation: Balancing strength and lightweight, reducing the load on the support, while strictly controlling dimensional tolerances, precisely adapting to different specifications of solar panels (monocrystalline silicon, polycrystalline silicon), facilitating installation and improving construction efficiency.

• Scratch-resistant and insulation protection: The contact parts with the solar panel adopt anti-scuffing design to avoid scratching the panel; some components come with insulation coatings to prevent leakage and ensure the electrical safety of the photovoltaic system.

Product Specifications Information (General + Supplementary Classification)

(1) General Specification Parameters

1. Size Range: Compatible with solar panel sizes (1560×660mm - 2100×1000mm), fastener specifications M4 - M12, bracket connection piece length 50mm - 500mm. Custom non-standard sizes can be provided based on the size of the photovoltaic panel and installation angle.

2. Strength Grades: Regular 6 and 8 grades, high strength 10 and 12 grades. Suitable for different installation heights (roof, ground) and load-bearing requirements, ensuring long-term stable support.

3. Material Classification:

• Carbon steel: Q235, 1018, with economical cost, suitable for ground support auxiliary connections, requires high-end surface treatment to enhance weather resistance.

• Stainless steel: 304 (general type), 316 (high corrosion resistance type), suitable for rooftops, coastal areas, and humid regions, rust-proof and corrosion-resistant, is the mainstream material for photovoltaic installation hardware.

• Aluminum alloy: 6061, 6063, lightweight, high strength, corrosion-resistant, suitable for roof supports and lightweight photovoltaic systems, reducing building load.

• Special materials: Hot-dip galvanized carbon steel (enhanced outdoor corrosion resistance), nylon (insulation connection pieces), suitable for special protection needs.

4. Surface treatment:

• Standard protection: Hot-dip galvanizing, colored zinc plating, with strong weather resistance, suitable for outdoor and ground photovoltaic projects, with long-lasting rust prevention effect.

• High-end protection: Dacromet (for aluminum alloys), anodizing, resistant to corrosion and UV rays, suitable for harsh climates such as coastal and high-altitude areas.

• Basic protection: Blackening, phosphating, suitable for indoor photovoltaic auxiliary components, with low cost.

Main Product Categories and Detailed Descriptions

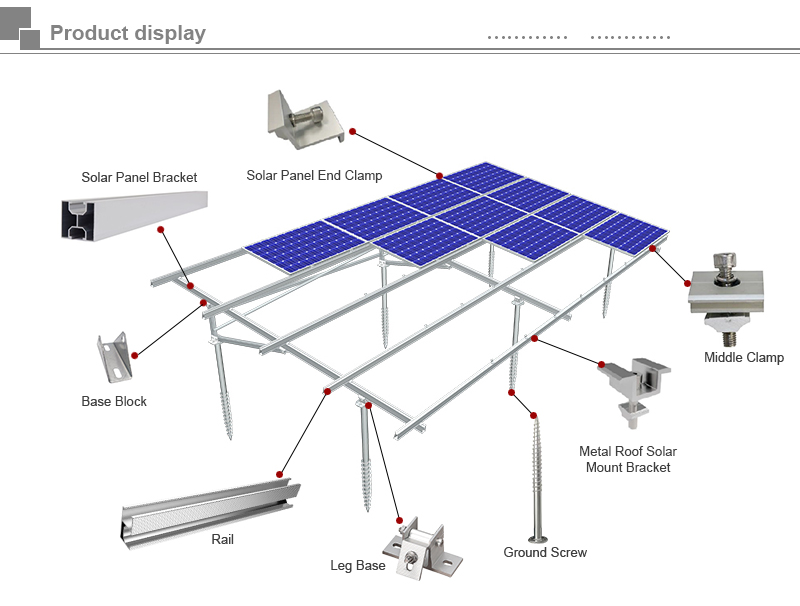

1. Solar Panel Fasteners (Solar Panel Fasteners)

Core Function: Fix the solar panels to the support structure. They are composed of bolts, nuts, and washers in a matching set, suitable for the installation holes of photovoltaic panels, ensuring a tight connection and preventing loosening. They are the basic components for installation hardware.

Classification Supplement: Special bolts for photovoltaics (with anti-loosening washers), nylon locking nuts, anti-scuffing washers (to avoid scratching the photovoltaic panels).

Applicable Industries: Household photovoltaics, commercial photovoltaics, industrial-grade photovoltaic power stations (on rooftops and ground surfaces).

Specification Supplement: Threaded specifications M4-M10, materials mainly 304 stainless steel and hot-dip galvanized carbon steel, strength grades 6-10, surface treatment mostly painted zinc color, Dacromet.

2. PV Bracket Connectors (PV Bracket Connectors)

Core Function: Connect the cross beams, columns, and diagonal braces of the PV bracket to form a stable bracket framework. They are suitable for different installation angles (0-60°), adjustable and easy to install, suitable for different scenarios such as rooftops and ground surfaces.

Classification Supplement: Angle joint connectors, flange connectors, adjustable connectors (adjustable installation angle), splicing connectors (extend the bracket).

Applicable Industries: Commercial PV power stations, industrial-grade PV projects, large-scale ground PV power stations.

Specification Supplement: Length 50mm-500mm, materials mainly aluminum alloy and 304 stainless steel, surface treatment as anodized (aluminum alloy), hot-dip galvanized, strength grades 8-12.

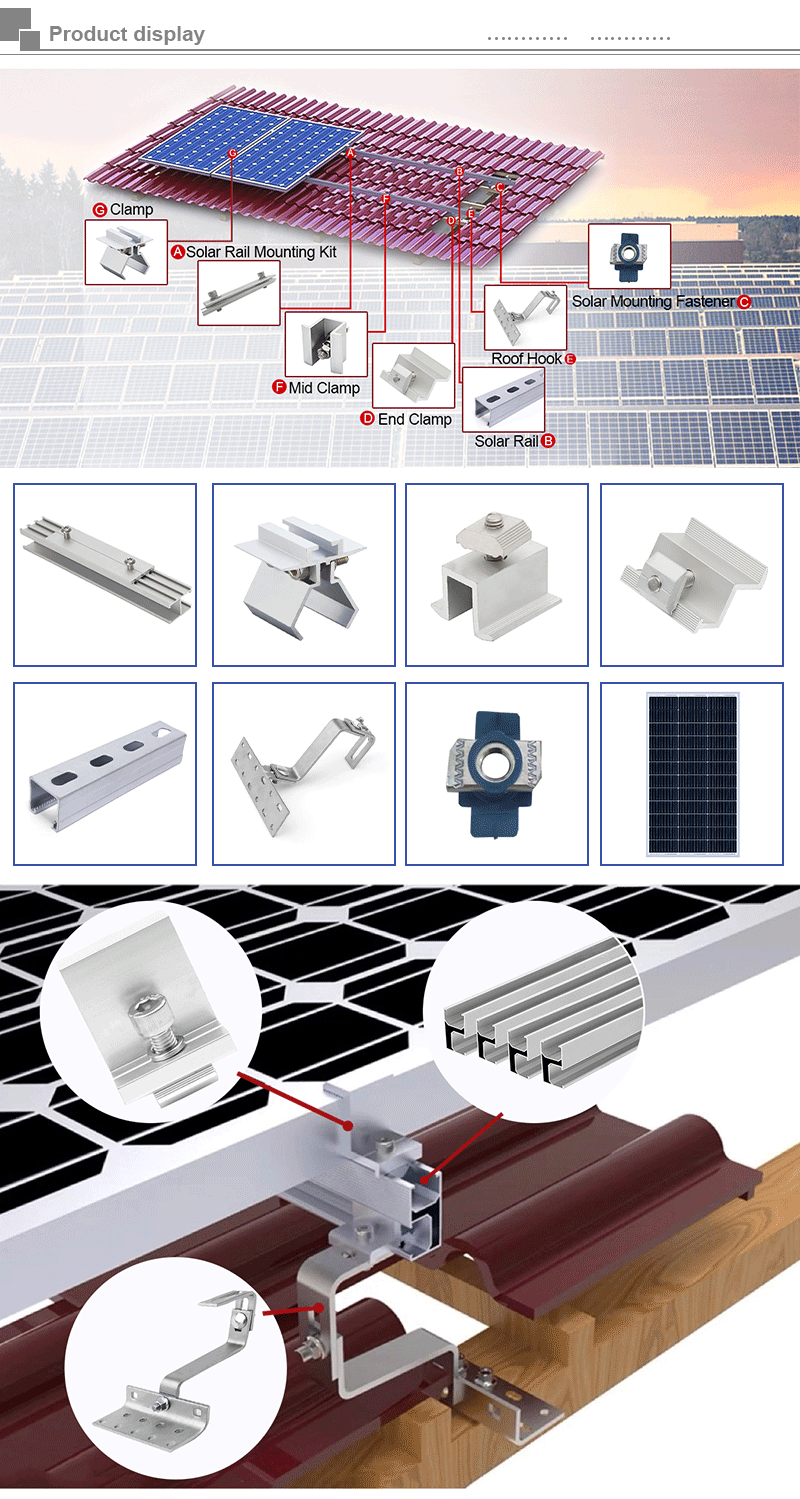

3. Roof Mounting Hardware (Roof Mounting Hardware)

Core Feature: Specifically designed for rooftop photovoltaics, it does not damage the roof structure. It is suitable for different roof types such as color steel sheets, concrete, and glazed tiles, and has advantages of waterproofing, anti-leakage, and firm fixation.

Classification Supplement: Color steel sheet clamps (no need for drilling), concrete expansion bolts, glazed tile-specific fixing seats, waterproof sealing parts.

Applicable Industries: Household rooftop photovoltaics, commercial rooftop photovoltaics (factory buildings, office buildings).

Specification Supplement: Suitable for roof thickness 50mm-200mm, materials mainly 304 stainless steel and aluminum alloy, surface treatment as anodized (aluminum alloy), hot-dip galvanized, with built-in waterproof gaskets.

4. Ground Mounting Accessories (Ground Mounting Accessories)

Core Function: Adapt to ground photovoltaic power stations, fix the support columns and foundation, resist strong winds and snow, suitable for different terrains (flat land, sloping land), can be batch-installed, improving construction efficiency.

Classification Supplement: Foundation embedded parts, column fixing seats, slope adjustment brackets, grounding connection parts.

Applicable Industries: Large-scale ground photovoltaic power stations, agricultural photovoltaic greenhouses, desert photovoltaic projects.

Specification Supplement: Materials mainly hot-dip galvanized carbon steel and 316 stainless steel, strength grades 10-12, surface treatment as hot-dip galvanized, Dacromet, suitable for complex terrain installation.

5. Special Scene Mounting Hardware (Special Scene Mounting Hardware)

Core Feature: Adapted for special photovoltaic scenarios such as water surfaces, vehicle shelters, curved roofs, etc., with advantages of anti-corrosion, anti-shaking, and strong adaptability, meeting personalized installation needs.

Classification Supplement: Water surface photovoltaic floating body connectors, vehicle shelter PV bracket accessories, slope roof-specific adjustment parts, tracking system connectors.

Applicable Industries: Water surface photovoltaic power stations, photovoltaic vehicle shelters, special-shaped roof photovoltaic projects, tracking-type photovoltaic systems.

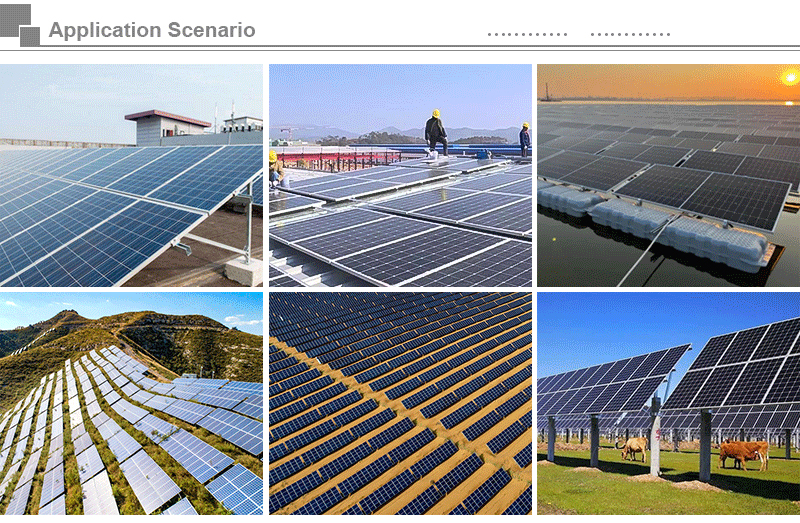

Summary of Overall Applicable Industries

Solar panel installation hardware is specifically designed to be compatible with all scenarios of photovoltaic power generation. The applicable industries include: residential photovoltaic (on rooftops), commercial photovoltaic (factory buildings, office buildings, shopping mall rooftops), industrial-grade photovoltaic power stations (on ground, on water surfaces), agricultural photovoltaic (greenhouse photovoltaic), photovoltaic car shelters, desert/altitude photovoltaic projects, distributed photovoltaic, centralized photovoltaic power stations. It is also compatible with related fields such as photovoltaic construction engineering and photovoltaic equipment support, providing stable and safe installation support for various photovoltaic systems.

FAQ

Q1: What parameters should the hardware be adapted to?

A1: The core parameters to be adapted are the size of the solar panel and the specification of the support structure. The fasteners need to match the M4-M12 threads and the corresponding strength grade.

Q2: What materials should be selected for different scenarios?

A2: For roofs/regular use, 304 stainless steel is selected; for coastal/damp areas, 316 stainless steel is chosen; for lightweight applications, aluminum alloy is used.

Q3: Will the roof installation damage the roof?

A3: No, the special roof clamps do not require drilling and are equipped with waterproof gaskets, which can prevent leakage.

Q4: Is non-standard customization supported? What is required to be provided?

A4: Yes, provide the size of the photovoltaic panel, the installation scenario (roof/ground) and the installation angle.
