Stainless steel half thread full thread pan head torx drive self tapping screw wood screw Stainless steel half thread full thread pan head torx drive self tapping screw wood screw
Stainless steel half thread full thread pan head torx drive self tapping screw wood screw Stainless steel half thread full thread pan head torx drive self tapping screw wood screw
Stainless steel half thread full thread pan head torx drive self tapping screw wood screw Stainless steel half thread full thread pan head torx drive self tapping screw wood screw
Stainless steel half thread full thread pan head torx drive self tapping screw wood screw Stainless steel half thread full thread pan head torx drive self tapping screw wood screw
Stainless steel half thread full thread pan head torx drive self tapping screw wood screw Stainless steel half thread full thread pan head torx drive self tapping screw wood screw
Stainless steel half thread full thread pan head torx drive self tapping screw wood screw Stainless steel half thread full thread pan head torx drive self tapping screw wood screw

Stainless steel half thread full thread pan head torx drive self tapping screw wood screw

Availability:
Quantity:
  • M5, M6, M7, M8, M10, M12

  • 0.8

  • 3.74

  • 3.26

  • 8, 10, 11, 13

  • 7.64, 10.57

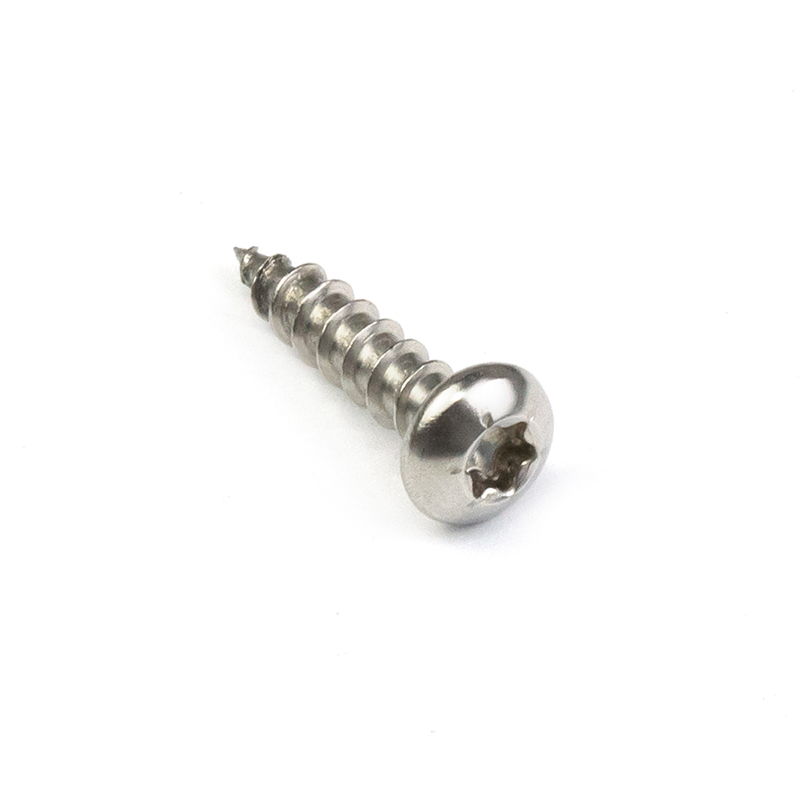

The Pan Head Self Tapping Screw is a versatile fastening solution designed for applications where a flush, secure fit is required without the need for pre-drilled holes. These screws are characterized by their pan head, which provides a large bearing surface, and their self-tapping thread, which allows them to cut their own threads in a predrilled hole.
Introduction

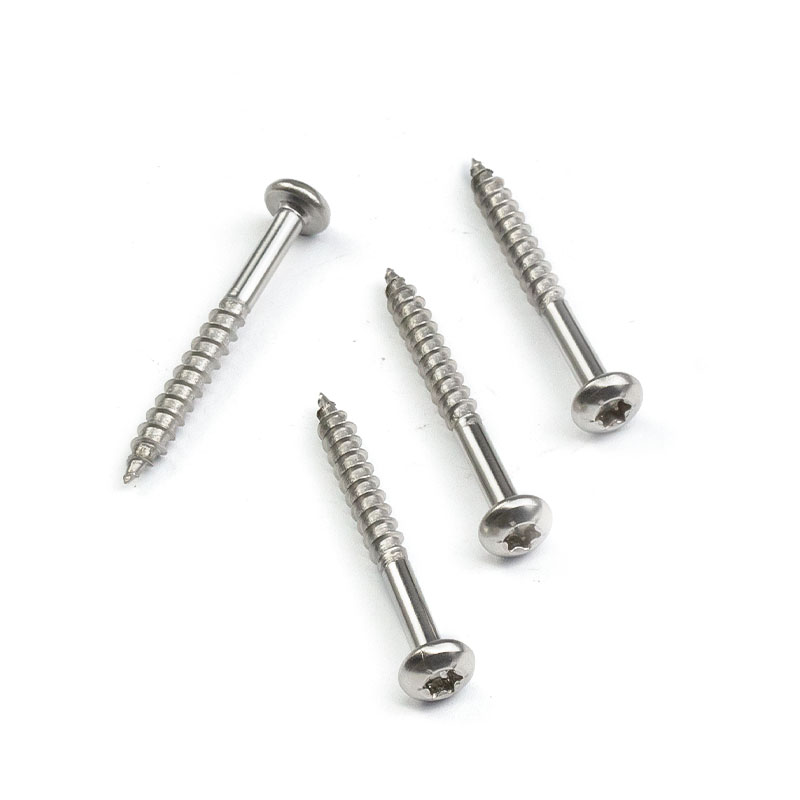

The Stainless Steel Pan Head Torx Drive Self-Tapping Screw Kit is a versatile fastener solution designed for wood, plastic, and thin metal applications, combining ease of installation with superior torque control. Made from A2-70 stainless steel, these screws feature a pan head for surface flushness, Torx drive for anti-cam-out performance, and self-tapping threads for quick penetration in soft materials. Available in half-thread and full-thread variants, the kit includes 200+ pieces in popular sizes, making it ideal for woodworking, furniture assembly, and DIY projects.


Advantages


Design & Performance:

Torx TX10-TX25 drive: 6-lobe design allows 25% higher torque (10-50Nm) than Phillip drives, reducing stripping in dense woods (e.g., oak, teak).

Pan head (ISO 7045): Rounded top with undercut for 30% larger bearing surface, distributing load evenly in soft materials (compression strength ≥30MPa).

Self-tapping threads: Type AB (sharp point) for wood/plastic, Type B (blunt point) for thin metal (≤2mm), with thread pitch 0.4-1.25mm.

Material & Finish:

A2-70 stainless steel: 500-hour salt spray resistance, suitable for outdoor wood projects (decking, fencing) and humid environments (bathroom cabinets).

Surface treatment: Passivated or black oxide (optional) for UV resistance and aesthetic appeal in furniture applications.

Kit Configuration:

Sizes: #4-#12 (imperial) and M3-M8 (metric), lengths 10-50mm; half-thread (for wood) and full-thread (for plastic/metal) variants included.

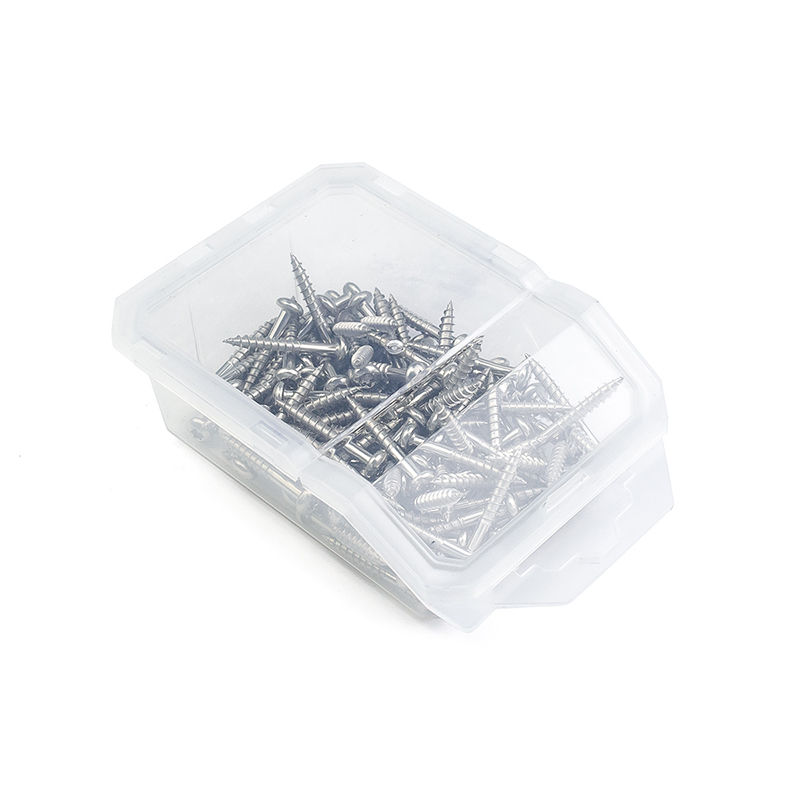

Organizer: Heavy-duty plastic case with removable dividers, labeled for quick size identification on job sites.

Compliance:

Meets ISO 1478, ASME B18.6.5, and RoHS 3.0, with CE marking for European construction applications.


Applications


Woodworking & Furniture: Assembles cabinets, shelves, and wooden fixtures, with self-tapping threads eliminating pre-drilling in softwoods (pine, cedar).

Plastic & Composite Materials: Fastens PVC panels, polyethylene sheets, and composite decking, with full-thread design preventing material splitting.

Thin Metal Fabrication: Secures aluminum sheets and steel frames (≤2mm), with Type B threads reducing burr formation in metal installations.

DIY Projects: Ideal for home repairs, craft projects, and garden furniture, with Torx drive compatible with common power tools (drill/drivers).


FAQ


Q: What's the difference between half-thread and full-thread screws?

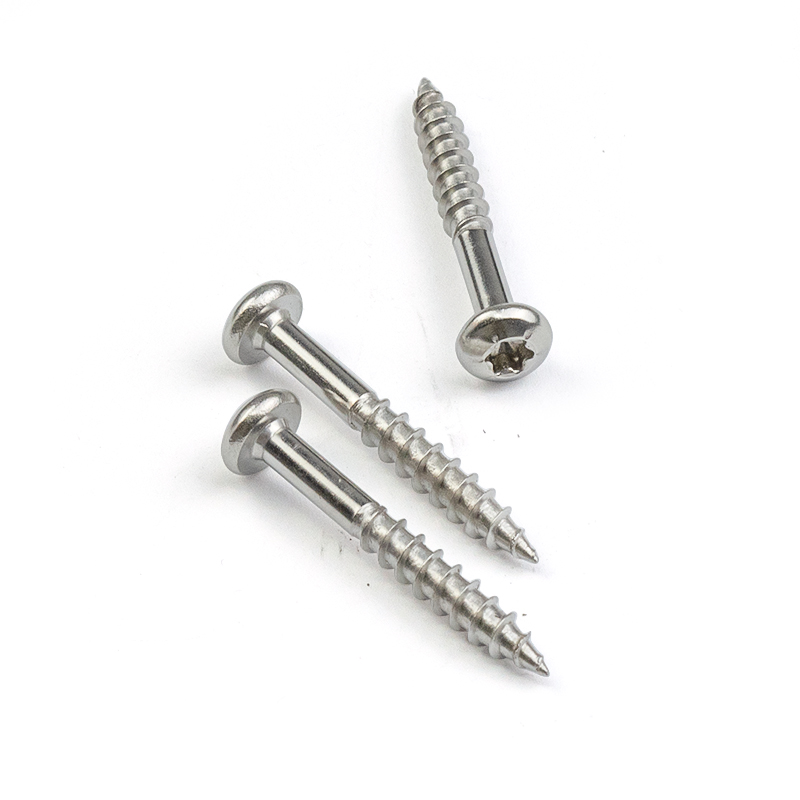

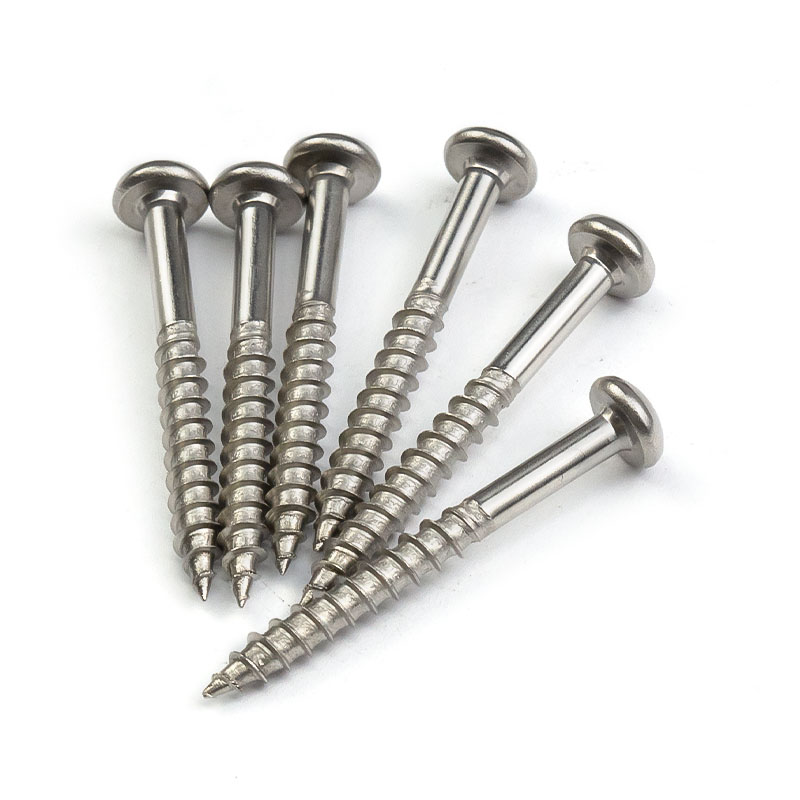

A: Half-thread (wood screws) have a longer shank for better holding power in wood; full-thread (machine screws) are for uniform material penetration in plastic/metal.

Q: Can these screws be used in pressure-treated wood?

A: Yes, A2-70 stainless steel resists copper-based preservatives in pressure-treated lumber (ACQ, CA-B).

Q: What is the recommended drill bit size for pre-drilling?

A: Use 80% of the screw diameter for wood (e.g., 3.2mm for M4), detailed in the included installation guide.
