M5, M6, M7, M8, M10, M12
0.8
3.74
3.26
8
7.64

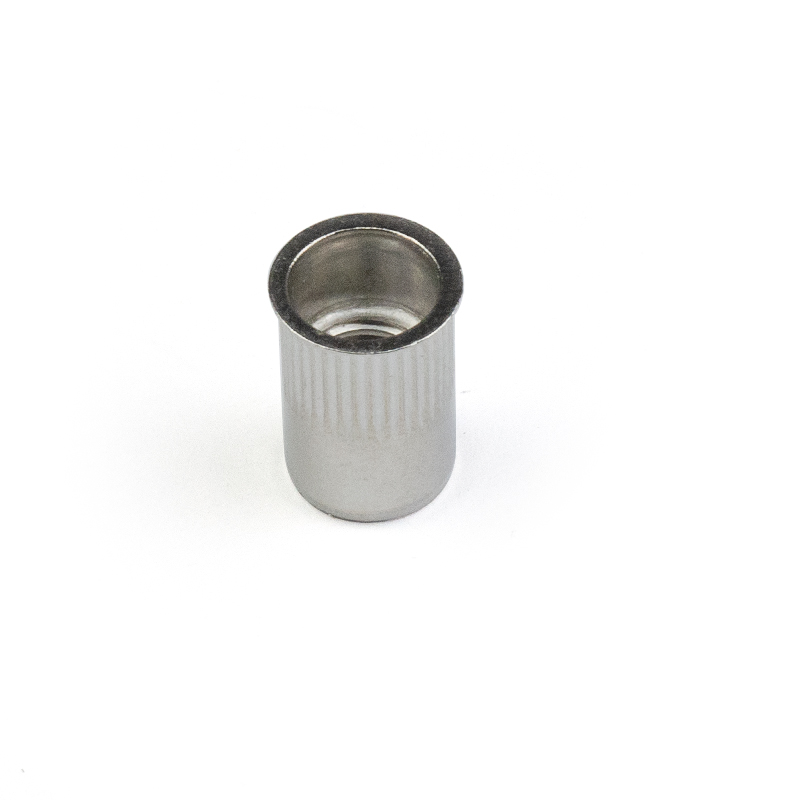

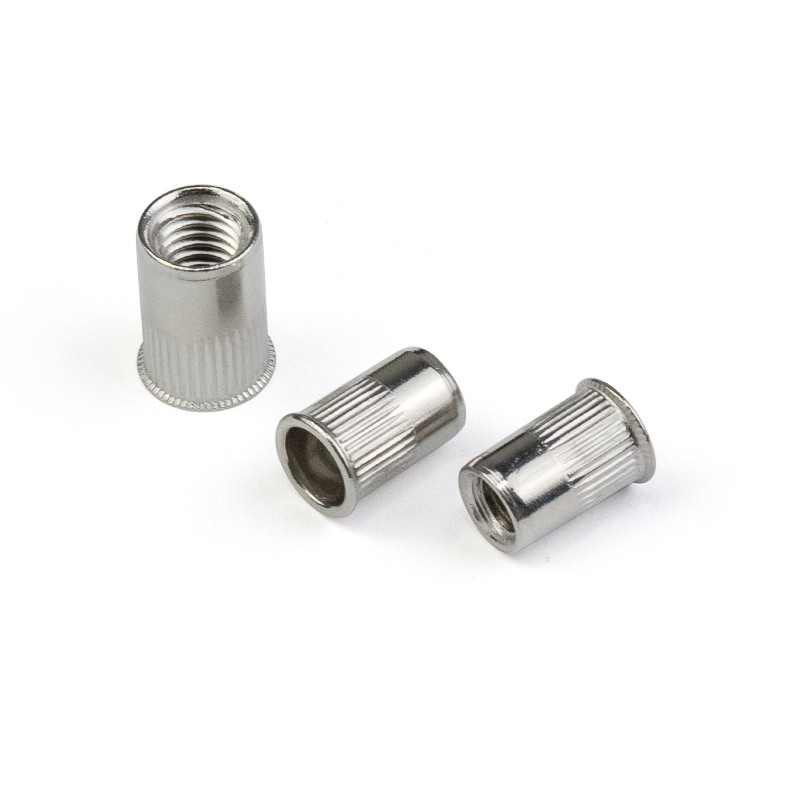

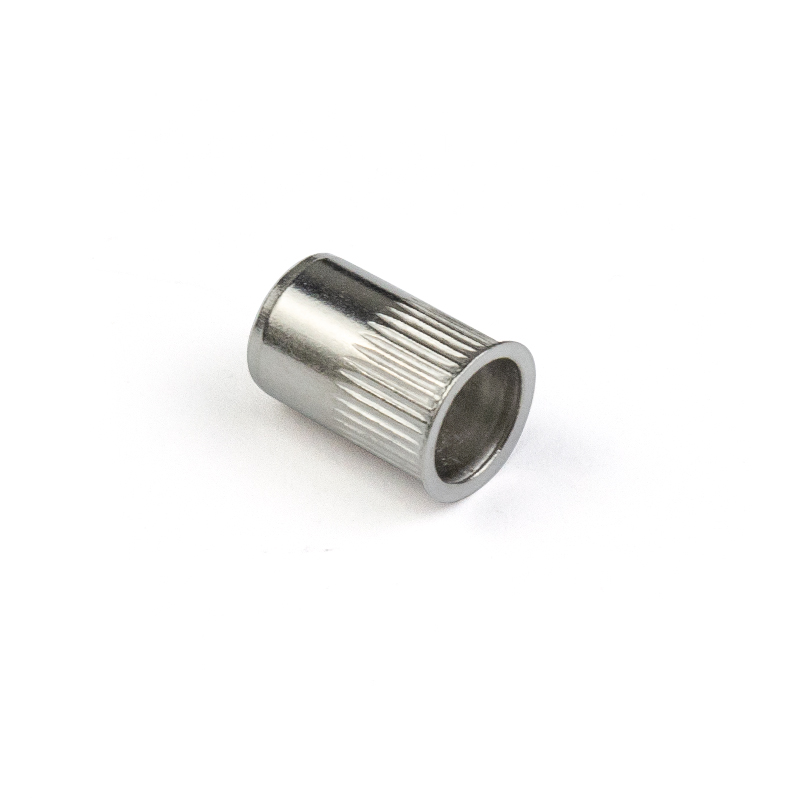

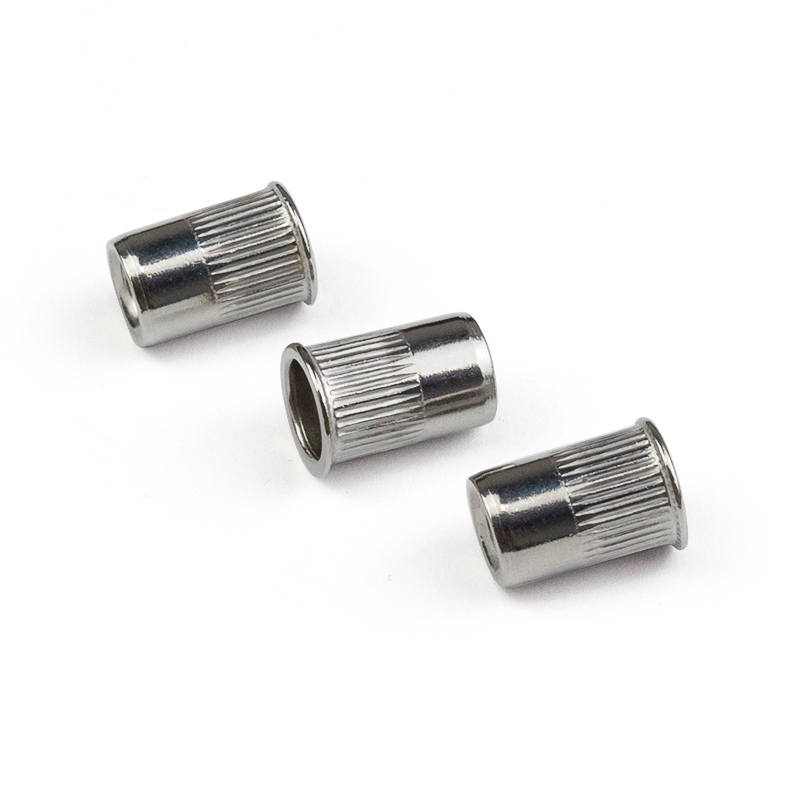

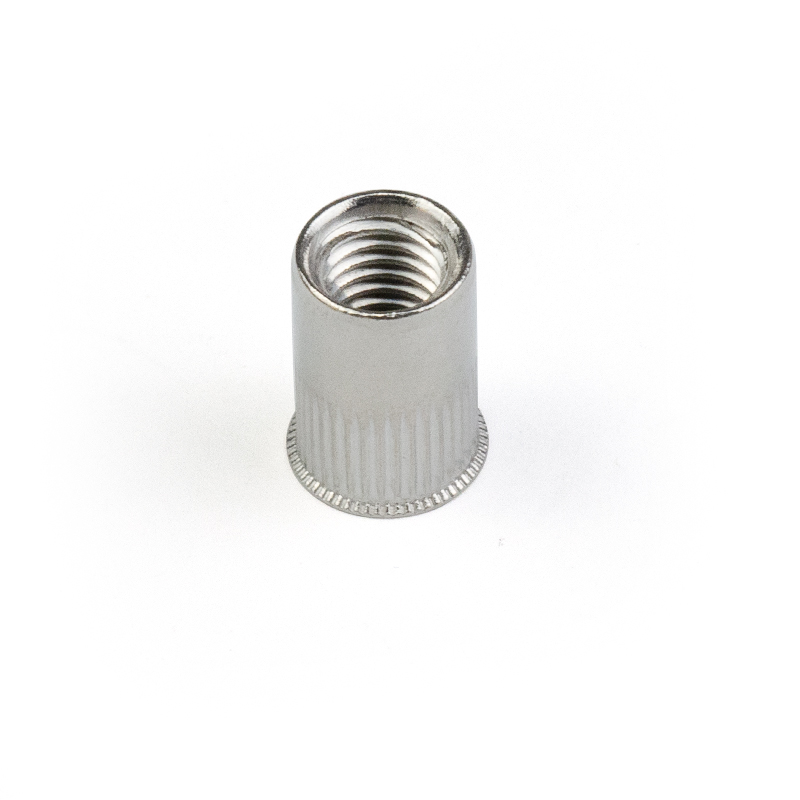

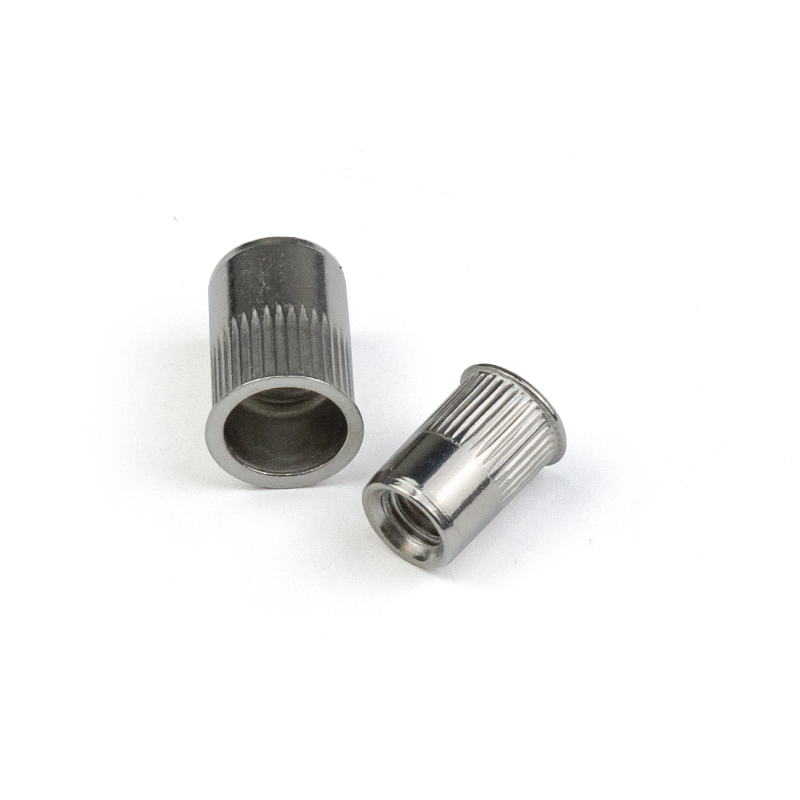

The Stainless Steel Aluminum Reduce Head Knurled Body Stripe Round Hollow Rivet Nut is a premium fastener engineered for lightweight, high-strength connections in aerospace, marine, and consumer electronics. Combining stainless steel (A2-70) and aluminum (6061-T6) materials, this rivet nut features a reduced head, knurled body, and striped round design, offering superior corrosion resistance and weight savings. The hollow construction allows through-hole installation in thin materials, making it ideal for applications where strength-to-weight ratio is critical.
The Stainless Steel Aluminum Reduce Head Knurled Body Stripe Round Hollow Rivet Nut is a premium fastener engineered for lightweight, high-strength connections in aerospace, marine, and consumer electronics. Combining stainless steel (A2-70) and aluminum (6061-T6) materials, this rivet nut features a reduced head, knurled body, and striped round design, offering superior corrosion resistance and weight savings. The hollow construction allows through-hole installation in thin materials, making it ideal for applications where strength-to-weight ratio is critical.
Dual-Material Construction:
Head: A2-70 stainless steel (304) for corrosion resistance (500+ hours salt spray); Body: 6061-T6 aluminum for lightweight strength (tensile strength 310 MPa), 60% lighter than all-steel alternatives.
Design: Reduced head (20% smaller than standard) with knurled stripe pattern (0.3mm depth), increasing friction by 25% in composite and plastic materials.
Performance Advantages:
Hollow body: Wall thickness 0.5-1.2mm, suitable for material thickness 0.8-2mm, with smooth internal threads (6H tolerance) for stainless steel screws.
Striped round body: Eliminates need for pre-drilled anti-rotation slots, reducing installation steps by 40% in automated assembly.
Corrosion & Compliance:
Stainless steel head resists crevice corrosion in dissimilar metal joints, compliant with ASTM B800 for aluminum-stainless steel compatibility.
RoHS 3.0, REACH, and Airbus AITM 6-0001 certified, suitable for aircraft interior applications (smoke, toxicity, and flammability compliant).
Size Range:
Thread sizes: M2-M6 (metric), #2-#8 (imperial); head diameter: 4-10mm; body length: 5-12mm, designed for micro to medium-scale lightweight structures.
Dual-Material Construction:
Head: A2-70 stainless steel (304) for corrosion resistance (500+ hours salt spray); Body: 6061-T6 aluminum for lightweight strength (tensile strength 310 MPa), 60% lighter than all-steel alternatives.
Design: Reduced head (20% smaller than standard) with knurled stripe pattern (0.3mm depth), increasing friction by 25% in composite and plastic materials.
Performance Advantages:
Hollow body: Wall thickness 0.5-1.2mm, suitable for material thickness 0.8-2mm, with smooth internal threads (6H tolerance) for stainless steel screws.
Striped round body: Eliminates need for pre-drilled anti-rotation slots, reducing installation steps by 40% in automated assembly.
Corrosion & Compliance:
Stainless steel head resists crevice corrosion in dissimilar metal joints, compliant with ASTM B800 for aluminum-stainless steel compatibility.
RoHS 3.0, REACH, and Airbus AITM 6-0001 certified, suitable for aircraft interior applications (smoke, toxicity, and flammability compliant).
Size Range:
Thread sizes: M2-M6 (metric), #2-#8 (imperial); head diameter: 4-10mm; body length: 5-12mm, designed for micro to medium-scale lightweight structures.
Aerospace Interiors: Secures composite panels and overhead bins in aircraft, reducing component weight by 30% compared to steel rivet nuts.
Marine Electronics: Fastens radar domes and navigation equipment on yachts, resisting saltwater corrosion and UV degradation (QUV 2000 hours).
Consumer Electronics: Mounts aluminum casings in laptops and tablets, with reduced head for ultra-thin designs (thickness ≤1.5mm).
Sports Equipment: Assembles carbon fiber frames in bicycles and golf clubs, ensuring vibration resistance (20G, 10-2000Hz) without delamination.
Aerospace Interiors: Secures composite panels and overhead bins in aircraft, reducing component weight by 30% compared to steel rivet nuts.
Marine Electronics: Fastens radar domes and navigation equipment on yachts, resisting saltwater corrosion and UV degradation (QUV 2000 hours).
Consumer Electronics: Mounts aluminum casings in laptops and tablets, with reduced head for ultra-thin designs (thickness ≤1.5mm).
Sports Equipment: Assembles carbon fiber frames in bicycles and golf clubs, ensuring vibration resistance (20G, 10-2000Hz) without delamination.
Material Innovation: First-to-market dual-material rivet nut, solving weight and corrosion challenges in aerospace and marine sectors.
Design for Assembly (DFA): Striped round body enables blind installation in automated lines, compatible with robotic grippers and vision systems.
Certification Leadership: Holds aerospace and marine certifications, reducing compliance testing costs for customers by 60%.
Engineering Support: Free DFA analysis for high-volume projects, optimizing installation speed and reducing assembly errors.
Material Innovation: First-to-market dual-material rivet nut, solving weight and corrosion challenges in aerospace and marine sectors.
Design for Assembly (DFA): Striped round body enables blind installation in automated lines, compatible with robotic grippers and vision systems.
Certification Leadership: Holds aerospace and marine certifications, reducing compliance testing costs for customers by 60%.
Engineering Support: Free DFA analysis for high-volume projects, optimizing installation speed and reducing assembly errors.
