| Availability: | |
|---|---|
| Quantity: | |
M5, M6, M7, M8, M10, M12
0.8
3.74
3.26
8
7.64

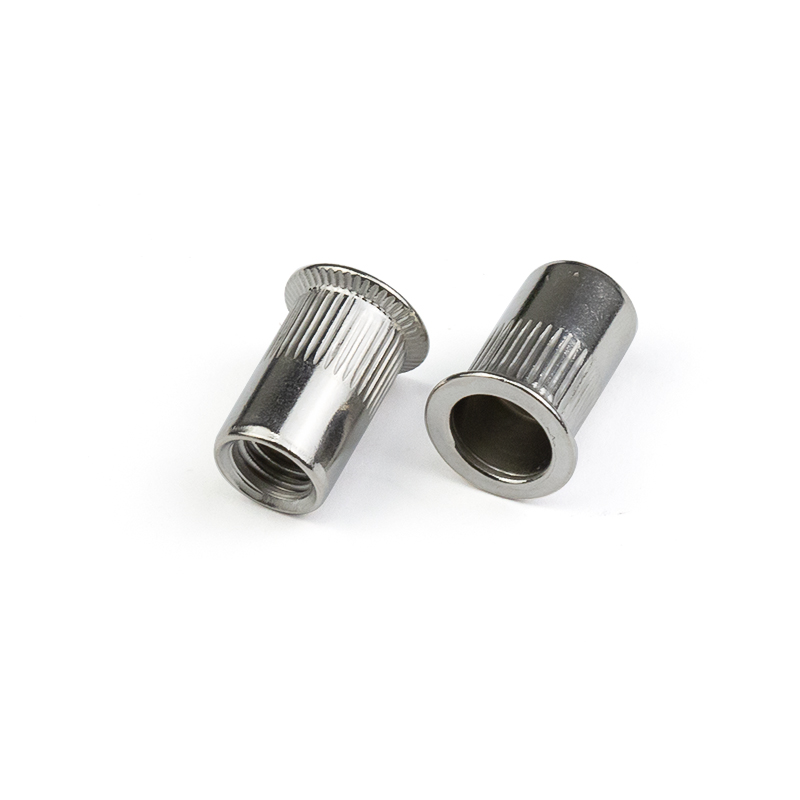

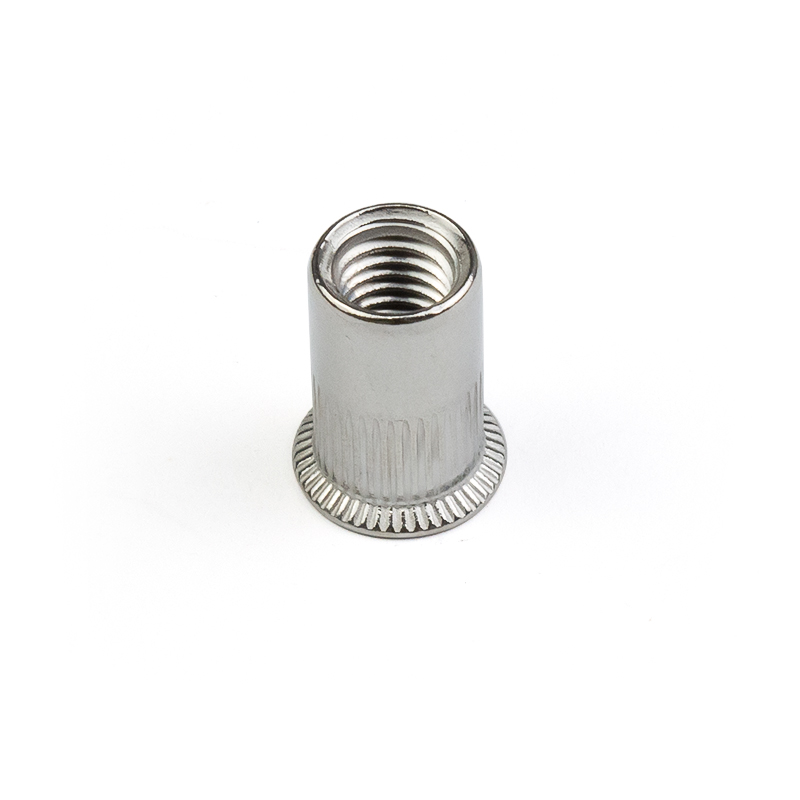

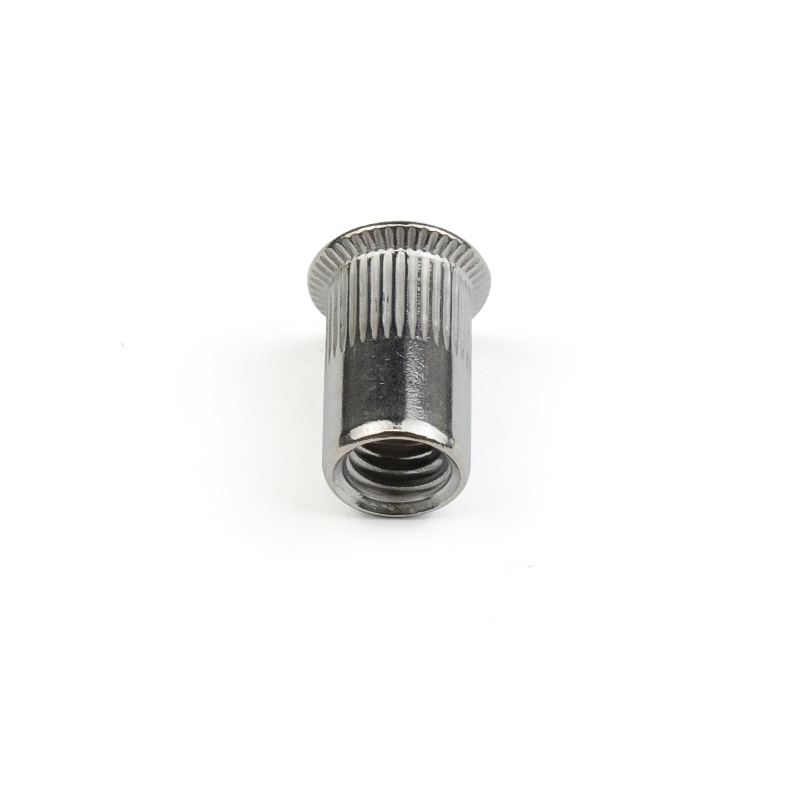

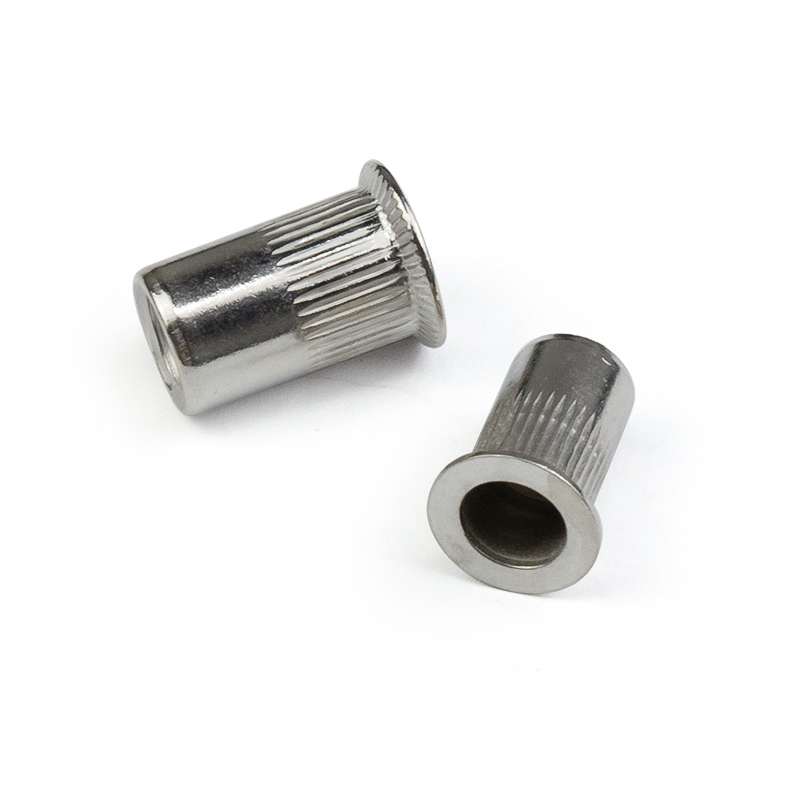

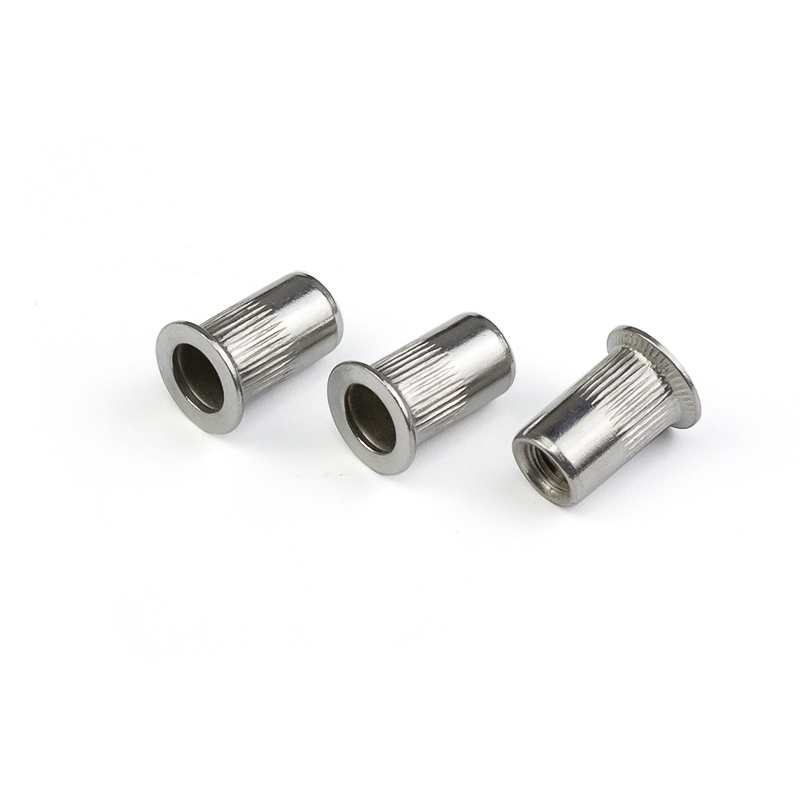

The Stainless Steel Countersunk Head Knurled Body Stripe Round Hollow Rivet Nut is a precision fastener designed for flush-mount, corrosion-resistant connections in architectural, medical, and marine applications. Crafted from A4-80 (316-grade) stainless steel, this rivet nut features a countersunk head, knurled body, and striped round design, ensuring seamless surface integration and superior chemical resistance. The hollow construction allows through-hole installation in thin materials, ideal for applications where aesthetics and durability are paramount.
The Stainless Steel Countersunk Head Knurled Body Stripe Round Hollow Rivet Nut is a precision fastener designed for flush-mount, corrosion-resistant connections in architectural, medical, and marine applications. Crafted from A4-80 (316-grade) stainless steel, this rivet nut features a countersunk head, knurled body, and striped round design, ensuring seamless surface integration and superior chemical resistance. The hollow construction allows through-hole installation in thin materials, ideal for applications where aesthetics and durability are paramount.
Premium Material & Design:
A4-80 stainless steel (316): 1000+ hours salt spray resistance, suitable for coastal, chemical, and medical environments (pH 2-12).
Countersunk head (ISO 10664, 82° angle): Flush installation in pre-drilled countersinks (depth tolerance ±0.1mm), achieving seamless surfaces in stainless steel facades and medical devices.
Knurled stripe body (0.4mm pitch): Enhances anti-rotation in soft metals (aluminum, copper) and composites, with 30% higher torque resistance than smooth bodies.
Performance Specs:
Hollow body: Weight 40% lighter than solid rivet nuts, with tensile strength 800 MPa and shear strength 600 MPa, exceeding ISO 14580 for 1-3mm materials.
Thread accuracy: 4H class tolerance, ensuring smooth engagement with titanium and stainless steel screws.
Installation & Compliance:
Blind installation: Requires specialized countersink rivet nut tools, suitable for single-sided access in pipes, tubes, and closed-section structures.
Surface finish: Electropolished (Ra ≤0.5μm) for hygiene compliance (ISO 13485 for medical devices, NSF 51 for food contact).
Size Range:
Thread sizes: M3-M8 (metric), 1/8"-5/16" (imperial); head diameter: 6-14mm; body length: 6-15mm, compatible with material thickness 1-4mm.
Premium Material & Design:
A4-80 stainless steel (316): 1000+ hours salt spray resistance, suitable for coastal, chemical, and medical environments (pH 2-12).
Countersunk head (ISO 10664, 82° angle): Flush installation in pre-drilled countersinks (depth tolerance ±0.1mm), achieving seamless surfaces in stainless steel facades and medical devices.
Knurled stripe body (0.4mm pitch): Enhances anti-rotation in soft metals (aluminum, copper) and composites, with 30% higher torque resistance than smooth bodies.
Performance Specs:
Hollow body: Weight 40% lighter than solid rivet nuts, with tensile strength 800 MPa and shear strength 600 MPa, exceeding ISO 14580 for 1-3mm materials.
Thread accuracy: 4H class tolerance, ensuring smooth engagement with titanium and stainless steel screws.
Installation & Compliance:
Blind installation: Requires specialized countersink rivet nut tools, suitable for single-sided access in pipes, tubes, and closed-section structures.
Surface finish: Electropolished (Ra ≤0.5μm) for hygiene compliance (ISO 13485 for medical devices, NSF 51 for food contact).
Size Range:
Thread sizes: M3-M8 (metric), 1/8"-5/16" (imperial); head diameter: 6-14mm; body length: 6-15mm, compatible with material thickness 1-4mm.
Architectural Metals: Secures stainless steel cladding and aluminum windows in coastal buildings, resisting salt air.
Medical Devices: Mounts stainless steel components in surgical tables and diagnostic equipment, with electropolished finish meeting ISO 14644-1 cleanroom standards.
Marine Equipment: Fastens hull fittings and deck hardware in offshore vessels, compliant with Lloyd’s Register and DNV GL marine certifications.
Food Processing: Installs stainless steel conveyor components in breweries and dairies, with A4-80 material preventing product contamination (FDA 21 CFR Part 177.2600).
Architectural Metals: Secures stainless steel cladding and aluminum windows in coastal buildings, resisting salt air.
Medical Devices: Mounts stainless steel components in surgical tables and diagnostic equipment, with electropolished finish meeting ISO 14644-1 cleanroom standards.
Marine Equipment: Fastens hull fittings and deck hardware in offshore vessels, compliant with Lloyd’s Register and DNV GL marine certifications.
Food Processing: Installs stainless steel conveyor components in breweries and dairies, with A4-80 material preventing product contamination (FDA 21 CFR Part 177.2600).
Hygienic Design: Electropolished surface and countersunk head eliminate debris traps, critical for medical and food-grade applications.
Corrosion Champion: A4-80 material outperforms 304 in chloride environments, reducing replacement costs by 50% in harsh conditions.
Custom Finishes: Offer PTFE-coated variants (10μm thickness) for non-stick applications and extreme chemical resistance (e.g., sulfuric acid environments).
Traceability: Full batch traceability from raw material to shipment, with mill certificates and test reports available upon request.
Hygienic Design: Electropolished surface and countersunk head eliminate debris traps, critical for medical and food-grade applications.
Corrosion Champion: A4-80 material outperforms 304 in chloride environments, reducing replacement costs by 50% in harsh conditions.
Custom Finishes: Offer PTFE-coated variants (10μm thickness) for non-stick applications and extreme chemical resistance (e.g., sulfuric acid environments).
Traceability: Full batch traceability from raw material to shipment, with mill certificates and test reports available upon request.
