Drop in Anchor

loading

Drop in Anchor Drop in Anchor
Drop in Anchor Drop in Anchor
Drop in Anchor Drop in Anchor
Drop in Anchor Drop in Anchor

Drop in Anchor

Availability:
Quantity:
  • M5

  • 0.8

  • 3.74

  • 3.26

  • 8

  • 7.64

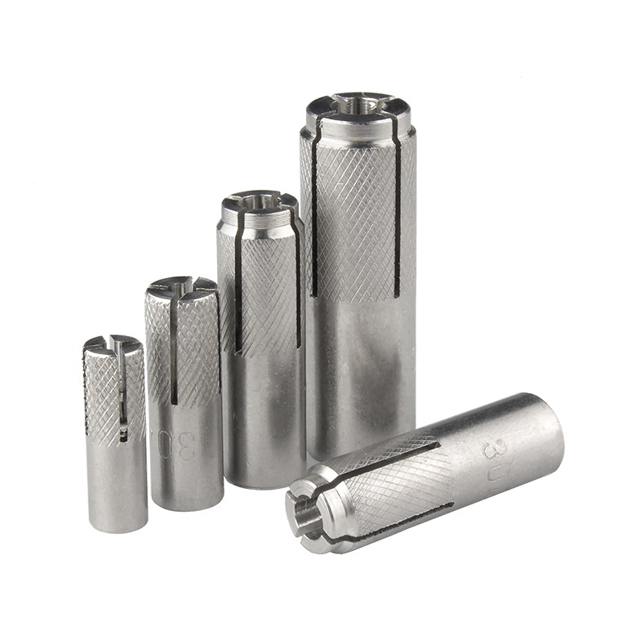

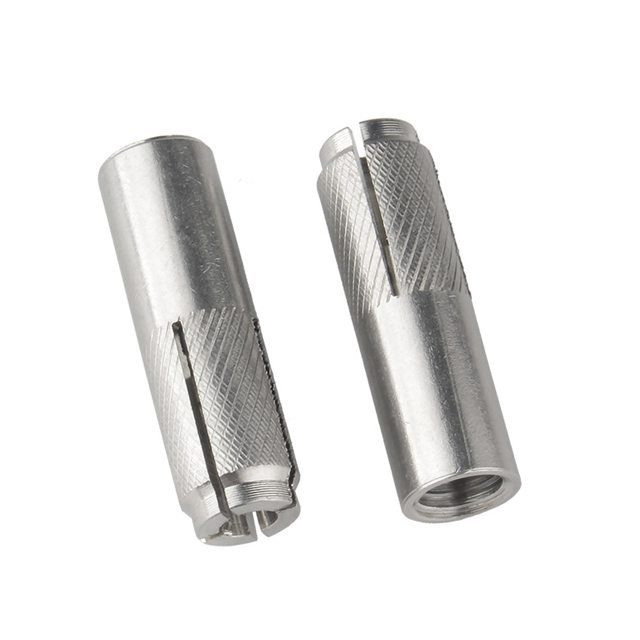

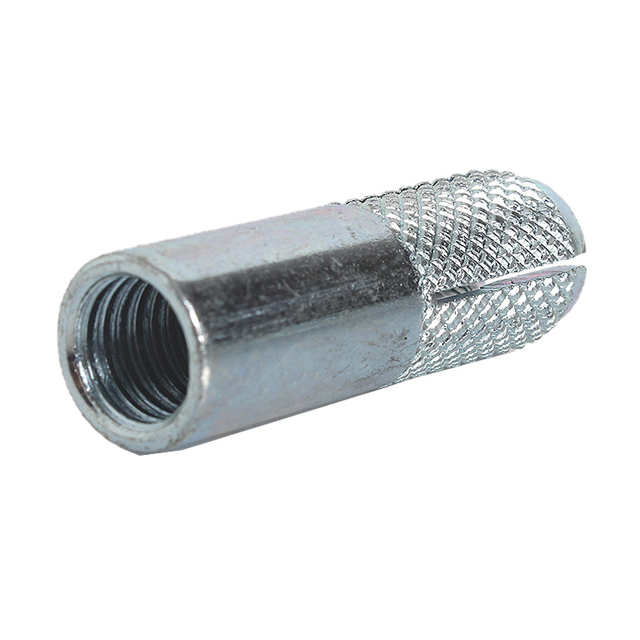

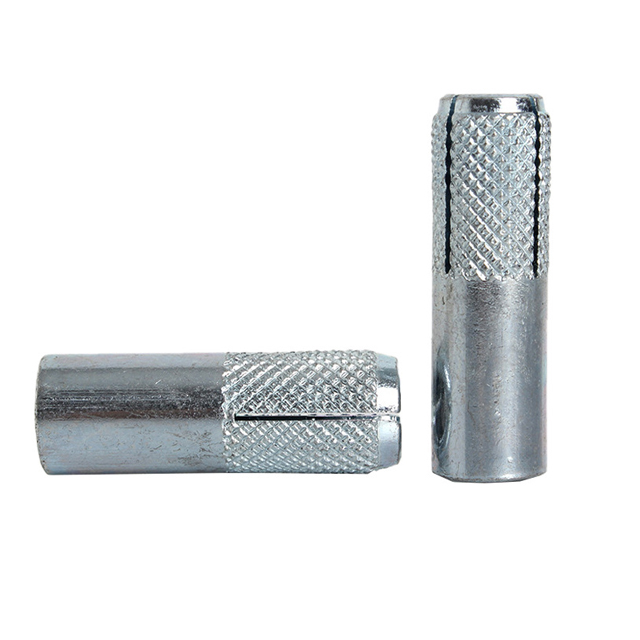

A drop-in anchor, also known as a one-piece anchor or a setting-type anchor, is a versatile and secure fastening device designed for use in solid concrete, brick, or block materials. This type of anchor is inserted into a pre-drilled hole and is set by tightening a bolt or screw, causing the anchor to expand and grip the surrounding material.
Technical Specifications
  • Diameters and Lengths: Drop-in anchors come in various sizes, typically ranging from 1/4 inch to 3/4 inch in diameter. The length is determined by the embedment depth required for the specific application.

  • Installation Requirements: The hole diameter should match the anchor diameter. The minimum embedment depth is usually 4-1/2 bolt diameters to ensure satisfactory anchor performance.

  • Load Capacities: The ultimate load values vary depending on the size and concrete strength. For example, a 1/4-inch diameter drop-in anchor in 2000 PSI concrete can handle a pull-out load of 939 lbs


Key Features

Material: Typically made from carbon steel, stainless steel, or other durable metals to ensure strength and resistance to corrosion.

Design: One-piece design simplifies installation and provides a clean, flush finish.

Expansion Mechanism: The anchor expands within the hole when tightened, creating a strong bond with the material.

Thread: Available with various thread types and sizes to match different applications and fasteners.

Finish: Options include zinc plating, hot-dip galvanizing, or stainless steel for enhanced corrosion resistance.


Applications

Construction and Renovation: Used for securing heavy fixtures, machinery, and equipment to concrete or masonry walls.

Industrial Settings: Employed in factories and warehouses for mounting shelves, racks, and heavy-duty equipment.

Residential Applications: Commonly used for hanging heavy objects such as televisions, chandeliers, and large mirrors.

Commercial Installations: Utilized in commercial buildings for securing display cases, signage, and other fixtures.

Infrastructure Projects: Used in the anchoring of electrical and communication equipment in public infrastructure.


Advantages
  • Strong Holding Power: Provides a robust and reliable connection to concrete surfaces.

  • Flush Finish: The design allows for a flush finish with the surface, making it suitable for applications where aesthetics are important.

  • Easy Installation: The pre-assembled design and straightforward installation process make it accessible for both professionals and DIY enthusiasts.


FAQ

Q:What types of fasteners do you manufacture or supply?

A:We offer a comprehensive range of fasteners including bolts, screws, nuts, washers, anchors, and specialty fastening products in various materials and finishes.

Q:Do you provide custom fasteners for specific applications?

A: Yes, we specialize in manufacturing custom fasteners tailored to customer specifications, including unique sizes, materials, and coatings.

Q:Can you supply fasteners with specific surface treatments?

A:We offer surface treatments like zinc plating, hot-dip galvanizing, black oxide coating, and powder coating to meet different corrosion resistance and aesthetic requirements.

Q:What is your minimum order quantity (MOQ) for custom fasteners?

A:Our MOQ varies depending on the fastener type and customization requirements. We can discuss your specific needs to provide a personalized quote.
