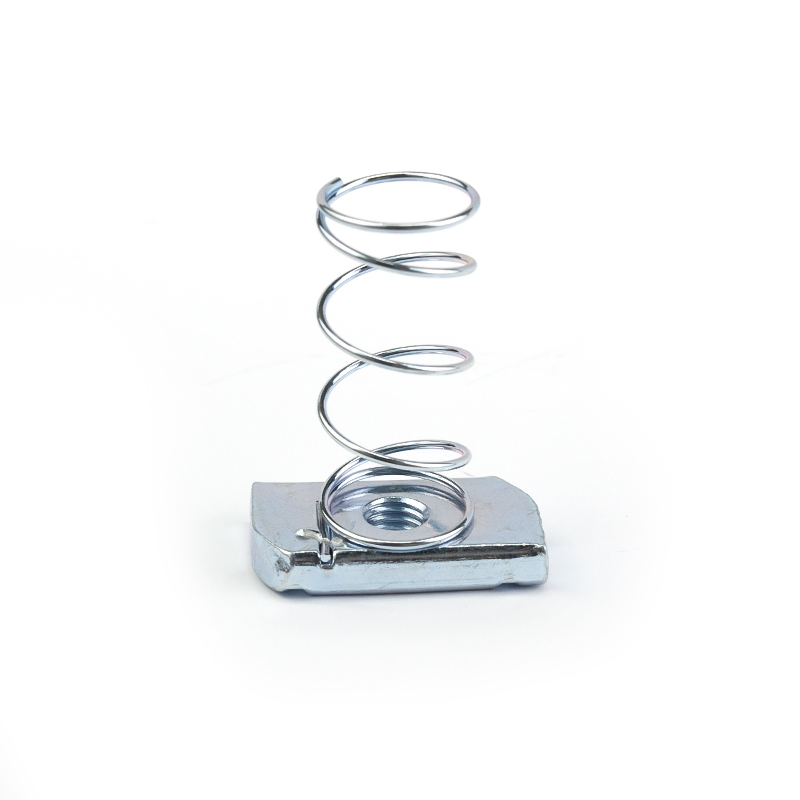

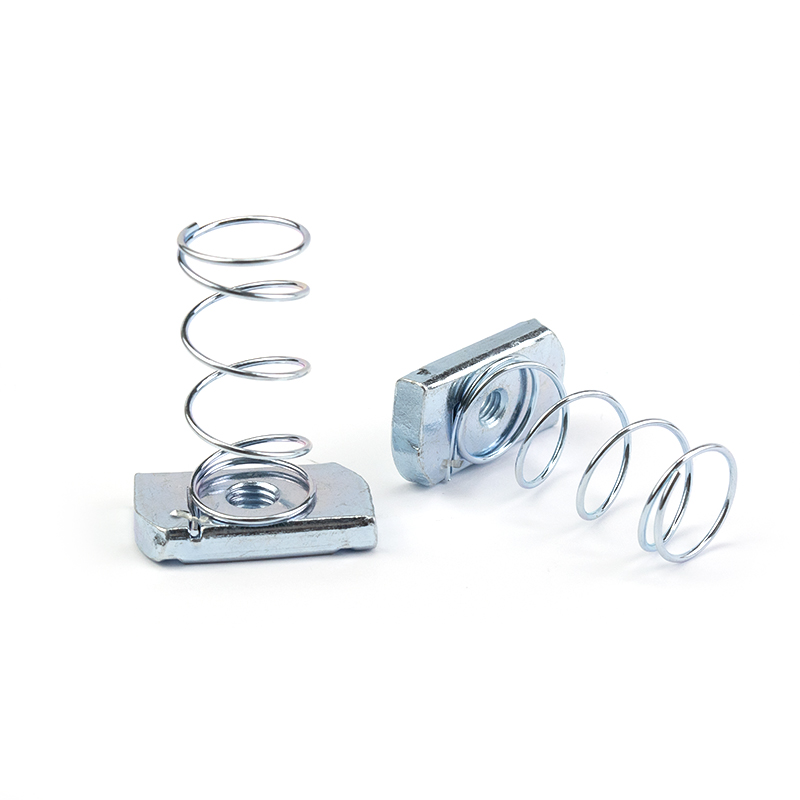

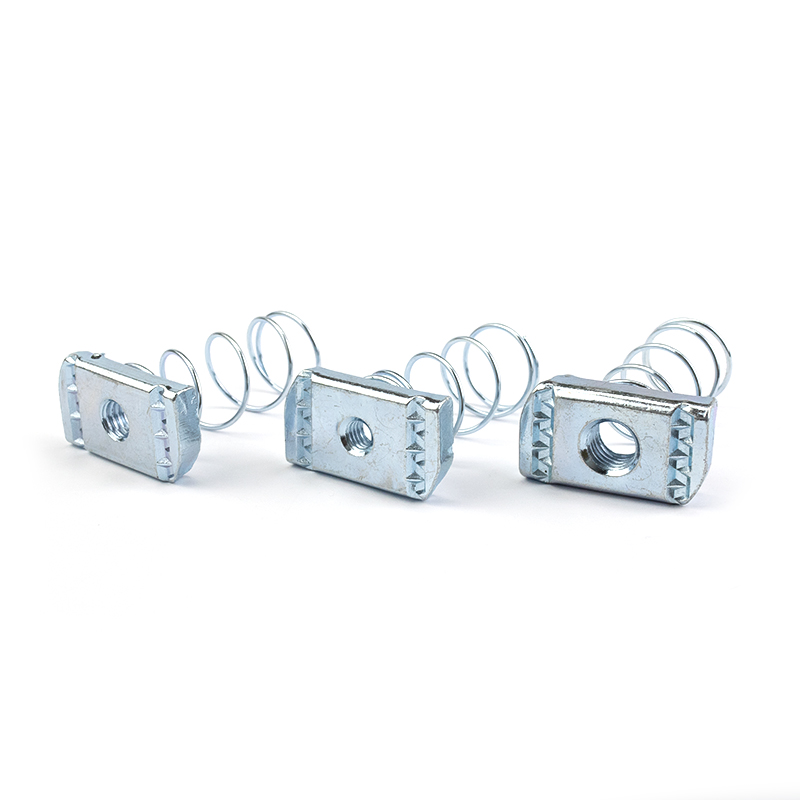

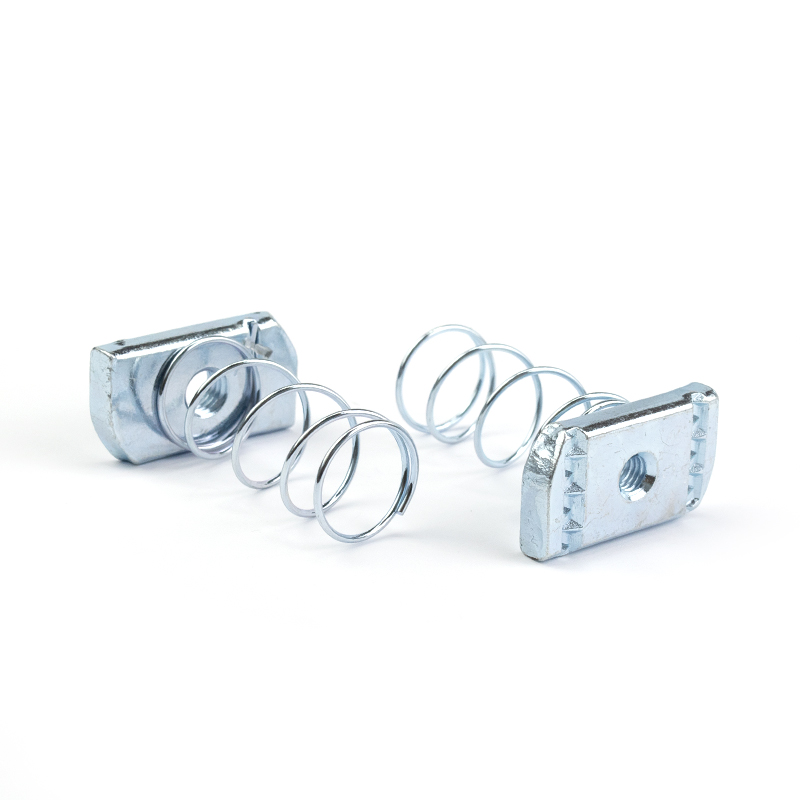

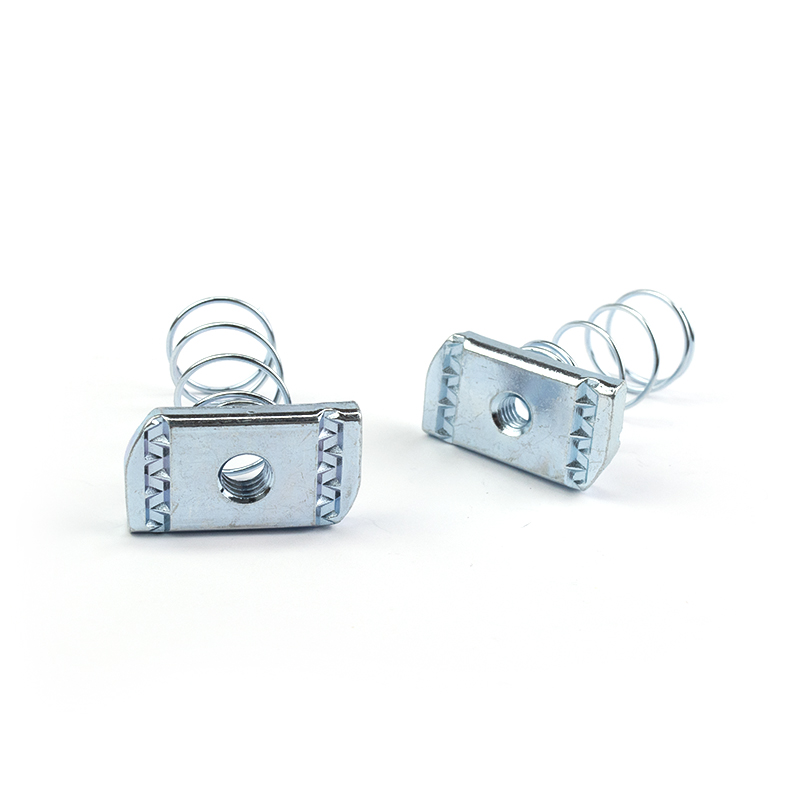

Carbon Steel Blue Galvanized Spring Nut Regular Spring Channel Nut

Installation is flexible and convenient: No pre-drilling is required. It can be slid and positioned at any position along the C-shaped steel channel, and can be quickly tightened with bolts, significantly improving construction efficiency and meeting the variable assembly requirements on-site.

Excellent anti-loosening and seismic performance: The spring provides continuous elastic preload force, which can effectively counteract the changes in gap caused by vibration, thermal expansion and contraction, preventing the nut from loosening and ensuring long-term stability of the connection.

High adaptability: Compatible with various specifications of C-shaped steel, it can be perfectly combined with the same series of bolts and washers, meeting the tightening requirements for different loads and installation scenarios.

Corrosion-resistant and durable: Using galvanized or painted zinc surface treatment, it has good rust prevention and corrosion resistance, and can be used for a long time in outdoor and humid environments.

Sufficient adjustment space: The telescopic property of the spring allows for a certain range of position fine-tuning, facilitating later adjustments and maintenance, and reducing the difficulty of renovation.

Structural Design: The body of the T-type nut is compatible with the C-shaped steel channel. The spring and the nut are combined as a unit. During installation, the spring is compressed and embedded into the channel, achieving automatic clamping and positioning.

Material Properties: The nut body is made of medium carbon steel or stainless steel. After heat treatment, it has high strength and good toughness. The spring is made of high carbon steel wire, with lasting elasticity and excellent fatigue resistance.

Standardization of Specifications: Produced in accordance with industry standards, covering common thread specifications such as M6, M8, and M10, suitable for different types of C-shaped steel, with high dimensional accuracy and tight fit.

Appearance Markings: The surface is in a bright silver zinc coating or colored zinc color. The T-shaped structure and the spring shape are highly recognizable, facilitating quick identification and selection at the site.

• Plain Finish: For applications where surface treatment is not required or in environments with minimal corrosion risks.
• Zinc Plating: Provides basic corrosion resistance and is suitable for general - purpose applications.
• Hot - Dipped Galvanizing: Offers superior corrosion protection, ideal for outdoor or harsh environments.
• Other Treatments: Such as electroplating, mechanical plating, etc., can be customized according to specific requirements.

Photovoltaic support system: C-shaped steel frame connection for photovoltaic module supports and trackers, enabling rapid assembly and position adjustment of the support beams and columns.

Mechanical and electrical pipeline installation: In cable trays, fire protection pipes, and air conditioning ducts, as the core connection component, it realizes flexible fixation of pipelines and steel structures.

Steel structure factory buildings: Used for the connection of roof trusses and secondary beams in factories, as well as the modular assembly of equipment racks and guardrails.

Warehousing and logistics equipment: Suitable for the connection of shelves and vertical warehouses, facilitating the adjustment of position and expansion of shelf slabs and columns.

Railway transportation and power facilities: Applied to the mechanical and electrical pipeline supports and hangers of subways and high-speed railways, as well as the steel structure installation of power cabinets and communication base stations, ensuring long-term seismic resistance and anti-loosening.
